Deck Ethic Pandemonium V2 500 Black
Brand
EthicGreutate | 950 |
---|---|
Concavitate | Da |
Bifurcație deckă | Dintr-o bucată |
Lățime deck | 130 mm |
Lungime deck | 500 mm |
Unghiul headtub-ului | 83 |
Înălțimea headtub-ului | 100 |
Spațiu pentru picioare | 330 |
Deck-end | Peg-cut |
Griptape | Da |
Deck | Compatibilitate cu diametrul roții | 100, 110, 115, 120, 125 |
Compatibilitatea cu lățimea butucului roții | 24 mm |
Deck | Compatibilitate cu lățimea PU rotiță | 24 mm, 26 mm, 28 mm |
Tipul de frână | Fender |
Gradul de rezistență al materialului | T6 |
Material | Aluminiu |

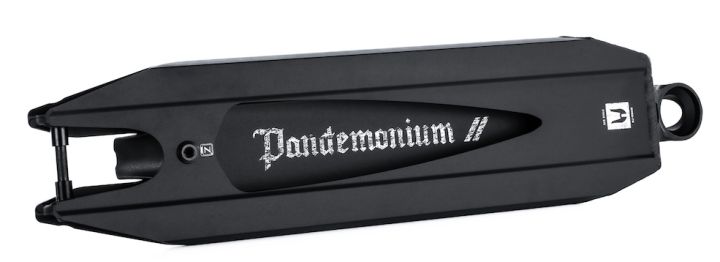

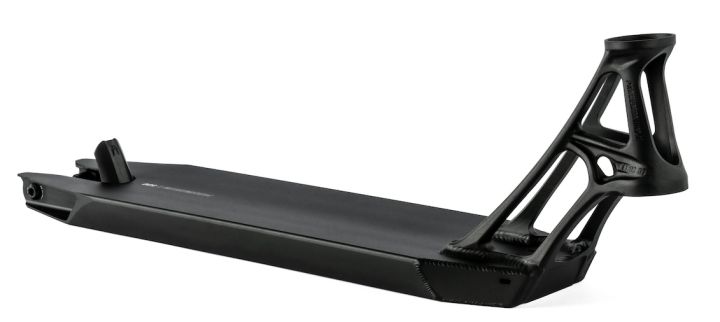

Here is the Ethic Pandemonium V2 deck.
The lightest deck in the world and the first ever to not exceed one kilogram.
In order to achieve the lowest possible weight, this new deck has been studied from every possible angle. And now, nine years after the release of the iconic Pandemonium V1, Pandemonium comes in a new format.
The V2 version is 1 cm wider than the V1 version (130 mm / 5.12”), it is also above all more durable than its predecessor.
Hundreds of hours of simulations were performed in the development of the Pandemonium V2 to achieve the most efficient geometry, giving the deck 29 % more banana effect resistance and also 40% more neck resistance.
The deck is made from 6082 aluminium (slightly stronger than the usual 6061).
The Pandemonium V2 is now compatible with 120mm diameter wheels and comes with a brand new brake to reduce total weight.

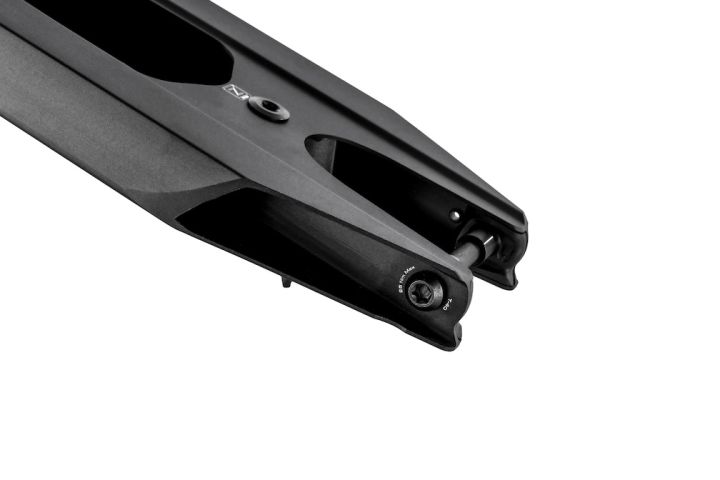

This deck also features new externally threaded torx axles that are stronger and more practical (only one wrench is needed to tighten the deck).

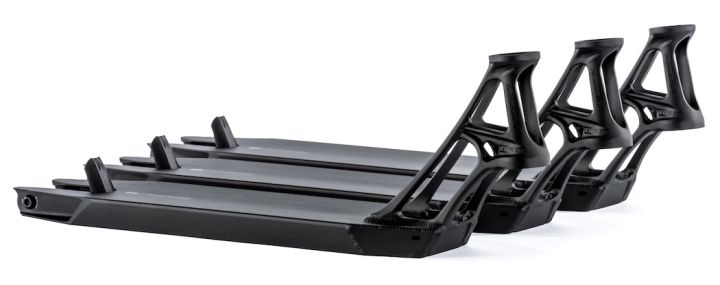

3 lengths are available: 460 mm (18.1 in) / 500 mm (19.7 in) / 540 mm (21.3 in)
3 colours: Black / Raw / Chrome Blue
What is the box? Pre-cut griptapes, spare classic brake and Torx 40 wrench.
To ensure the longevity of the deck, you must remember one thing: tighten the rear axle with the correct tightening torque and do not overtighten it (max. 25 Nm), otherwise you will negatively affect the life of the deck.
Evolution (compare with Pandemonium V1) :
- World’s lightest deck (24 % lighter size/weight ratio : - 320 g)
- Wider (+10 mm)
- Stronger (+ 29 % on the extrusion / + 40 % on the neck)
- New 8 STD fender V2 including 7075 bolt
- New Torx n°40 axle
- Switch diameter feature allowing dual brake position (110 / 120 mm)
- Improved grip saver v2 (to protect the life of the griptape)
Compatible hardware :
- Pandemonium v2 axle
- Nylon Brake 8 STD V2 / Fender 8 STD V2
- 8 STD pegs (Alu or Steel)
